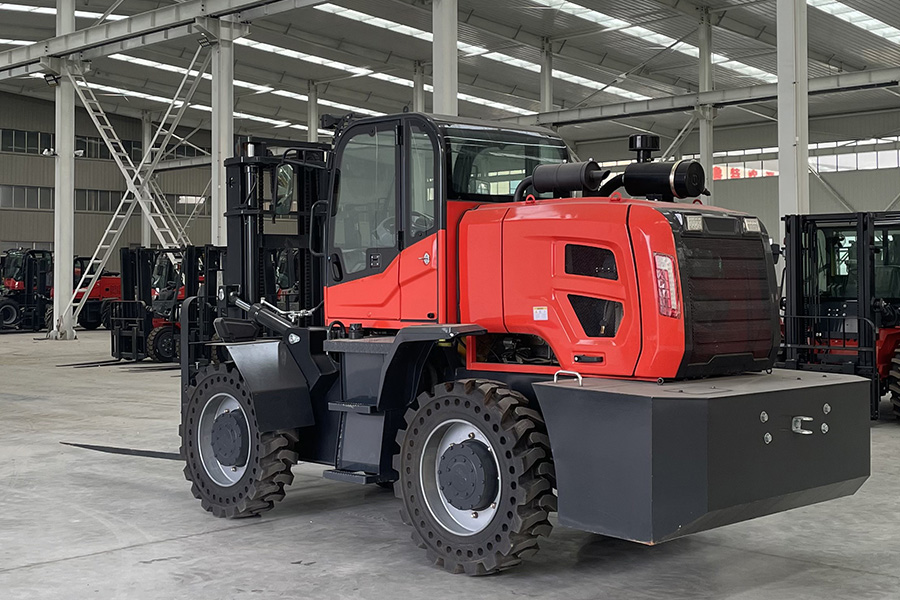

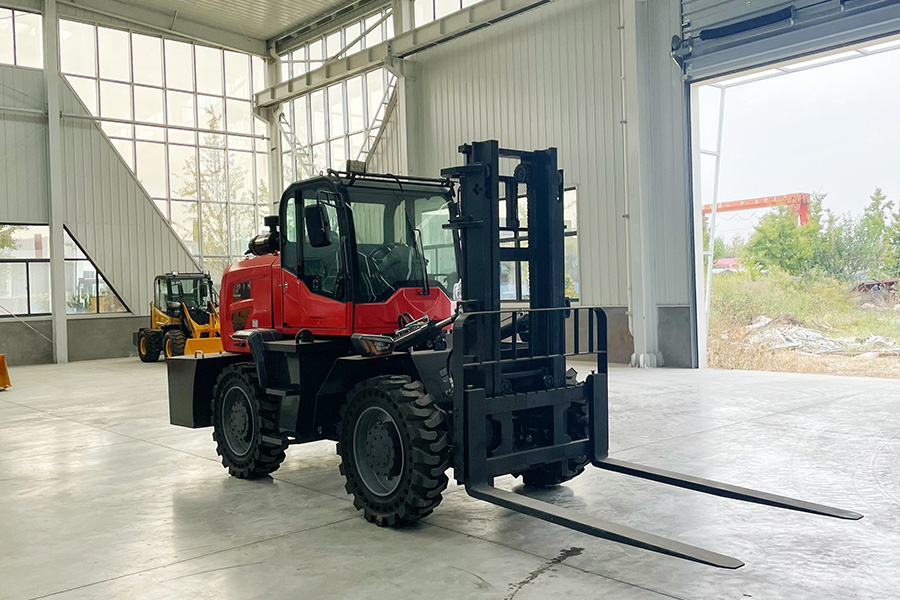

5t Internal Combustion All-Terrain Forklift

Laizhou Shahe Industrial Park, Yantai City, Shandong Province, China

Description

5T INTERNAL COMBUSTION ALL-TERRAIN FORKLIFT
TECHNICAL PARAMETERS
Model	5T INTERNAL COMBUSTION ALL-TERRAIN FORKLIFT
Engine model	4102 Pressurization/National IV frequency conversion
Fork length	1520mm
Rated lifting weight	5000Kg
Turning radius	3500mm
Wheelbase	2200mm
Car axle	Heavy duty cast steel bridge with large wheel edge
External dimensions	4450×2200×2900mm
Climbing angle	≤35°
Rated lifting height	3000-7000mm
Ground clearance at the front end of the gantry	300-380mm
Drive mode	Four-wheel drive
Transmission case	280 Dual high low speed torque converter
Door frame width	180mm
Tire	16/70-24
Whole machine weight	6300kg/4580kg
Note: Customized product, can be upgraded as per customer requirements.
Main functional features:
1. Powerful power and transmission system, high reliability, and low failure rate.
2. Adopting four-wheel drive, with a large climbing slope, high running speed, and good maneuverability. The maximum vehicle speed can reach 30 - 40 km/h. It has strong grip, anti-skid performance, and stability, and can adapt to complex road conditions such as mud, sand, and snow.
3. Good maneuverability and trafficability. It can achieve automatic stepless adjustment, has a high power utilization rate, can block the torsional vibration of the engine, reduce the impact load, and extend the service life of components.
4. Full hydraulic power steering. The steering wheel and seat are adjustable. Various control handles are designed according to ergonomics, which are easy and flexible to operate, reduce labor intensity, and improve efficiency.
5. The fully sealed cab has low noise, good shock absorption, and strong heat insulation effect. The driver has a wide view, providing a comfortable and safe working environment for the driver and facilitating maintaining operational stability.
6. The working device is designed through optimization and computer simulation technology, with a high unloading height, large breakout force, automatic leveling during unloading, and high operating efficiency.
7. It can be equipped with various attachments, such as boom buckets, grapples, and soft package clamps, to achieve various operation functions and be applied in different places such as construction sites, farms, mines, and docks.
