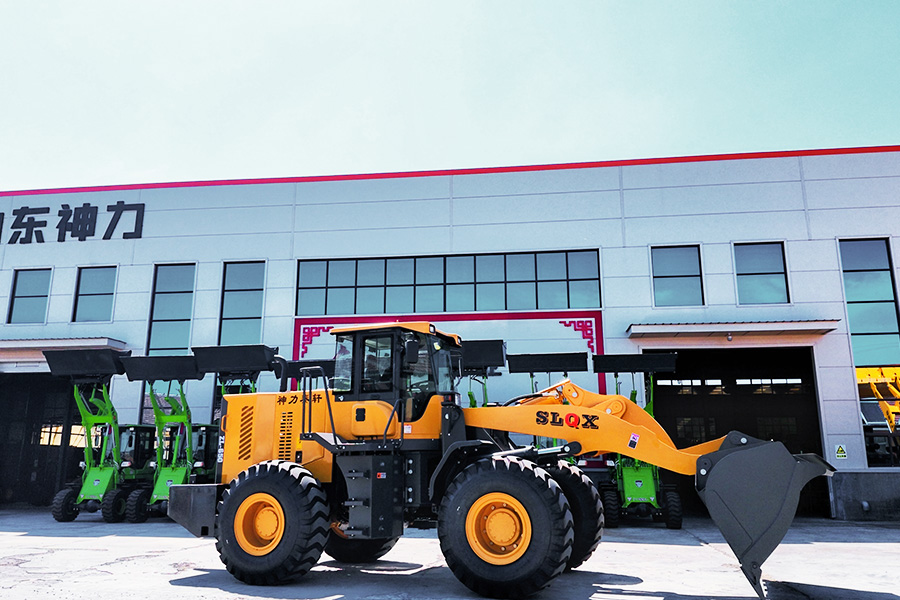

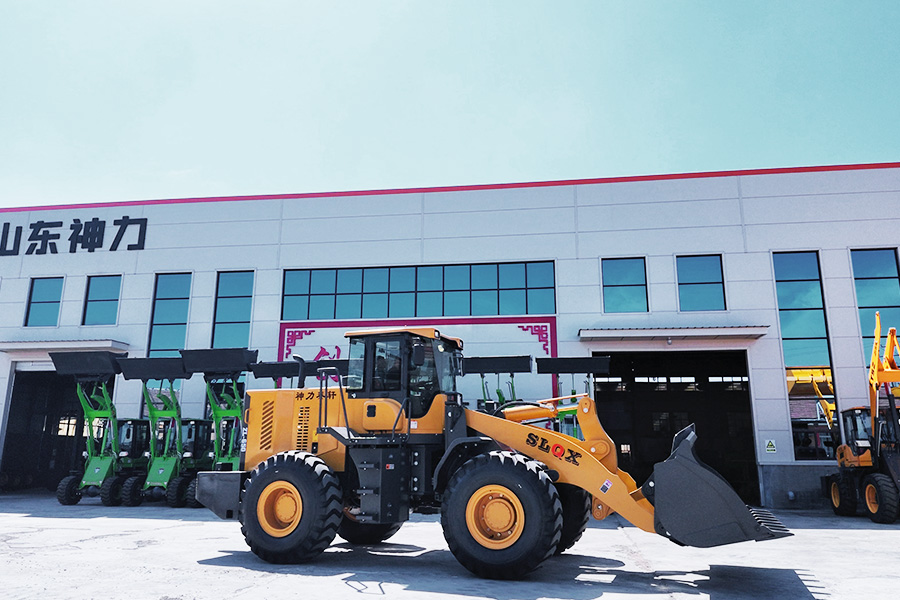

SLZG650 Wheel Loader
Laizhou Shahe Industrial Park, Yantai City, Shandong Province, China
Description
| Performance | 1 | rated load | 5000kg | |
|---|---|---|---|---|
| 2 | overall weight | 16500kg | ||
| 3 | rated bucket capacity | 3m3 | ||
| 4 | maximum tractive force | 148KN | ||
| 5 | maximum breakout force | 194KN | ||
| 6 | maximum grade ability | 30℃ | ||
| 7 | maximum dump height | 3200mm | ||
| 8 | maximum dump reach | 1000mm | ||
| 9 | overall dimension (L×W×H) | 8200×3000×3470mm | ||
| 10 | minimum turning radius | 7020mm | ||
| Engine | 11 | model | Weichai Steyr WD10G220E21 | |
| 12 | type | lnline water cooling dry cylinder injection | ||
| lnline water cooling dry cylinder injection | ||||
| 13 | No. of cylinder-bore/stroke | 6－126×130mm | ||
| 14 | rated power | 162kw--2200r/min | ||
| 15 | maximum torque | 900N.m | ||
| 16 | min fuel-consume ratio | ≤198g/kw.h | ||
| Transmission system | 17 | torque converter | YJ375 | |
| 18 | gearbox mode | Power shift normally engaged straight gear | ||
| 19 | gear shift | 2 forward shift 1reverse shift | ||
| 2 forward shift 1reverse shift | ||||
| 20 | maximum speed | 38km/h | ||
| Drive axles | 21 | main reducing spiral | bevel gear grade 1reduction | |
| bevel gear grade 1reduction | ||||
| 22 | decelerating mode | planetary reduction,grade 1 | ||
| planetary reduction,grade 1 | ||||
| 23 | wheel base (mm) | 3200mm | ||
| 24 | wheel tread | 2250mm | ||
| 25 | minimum ground clearance | 450mm | ||
| Hydraulic system | 26 | system working pressure | 17MPa | |
| 27 | boom lifting time | 6.05±0.25s | ||
| 28 | total time | 10.8±0.5s | ||
| 29 | fuel tank capacity | 300L | ||
| 30 | function of leveling automatically | |||
| function of leveling automatically | yes | |||
| Brake system | 31 | service brake | air over hydraulic disc brake on 4 wheels | |
| air over hydraulic disc brake on 4 wheels | ||||
| 32 | parking brake | manual parking brake | ||
| Tyre | 33 | type specification | 23.5-25 | |
| 34 | front tyre pressure | 0.4Mpa | ||
| 35 | rear tyre pressure | 0.35Mpa |
