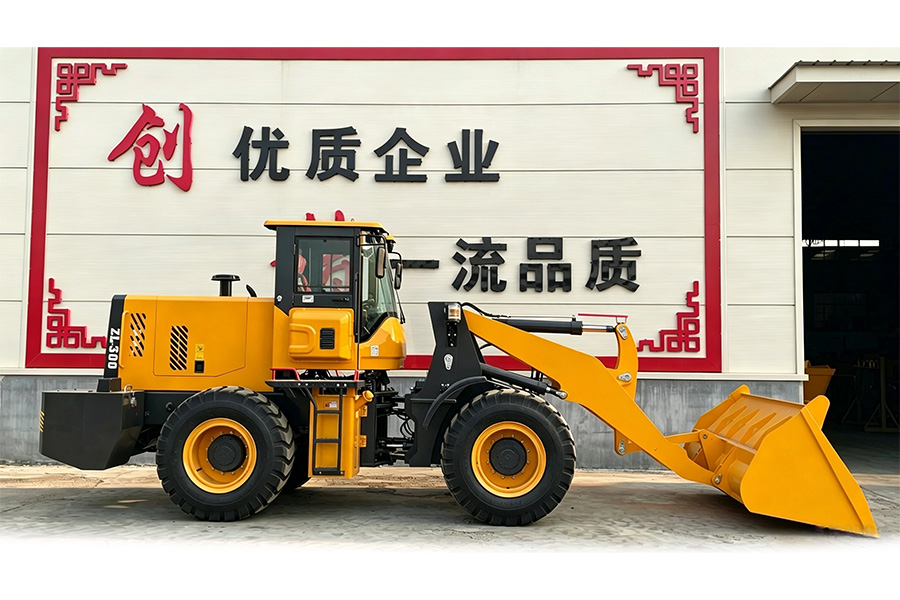

SLZG300 Wheel Loader
Laizhou Shahe Industrial Park, Yantai City, Shandong Province, China
Description
| SLZG300 (6105 Turbocharged) Loader Technical Specification Table | ||
|---|---|---|
| Category | Parameter item | Parameter Values |
| 1. Overall Size | Overall Dimensions (mm) | 7200*2350*2950 |
| Wheelbase (mm) | 2760 | |
| Track Width (mm) | 1750 | |
| Minimum Ground Clearance (mm) | 280 | |
| 2. Performance Parameters | System Pressure (MPa) | 32 |
| Machine Weight (Kg) | ≤7600 | |
| Top Speed (Km/h) | 44 | |
| Maximum Climbing Ability （°） | 35 | |
| Minimum Turning Radius (mm) | 4500 | |
| 3. Loading Parameters | Maximum Dumping Height (mm) | 3800 |
| Maximum Dumping Distance (mm) | 900 | |
| Bucket Width (mm) | 2350 | |
| Bucket Capacity （m³） | ≤1.4 | |
| Maximum Lifting Height (mm) | 4400 | |
| 4. Engine | Model | 6105 |
| Type | Four-cylinder stroke | |
| Rated Power (KW) | 92 | |
| Rated Speed (r/min) | 2400 | |
| Number of Cylinders - Bore | 4-108 | |
| Engine Horsepower | 125 | |
| 5. Transmission System | Transmission | Fixed-axle power shift |
| Number of Gears | Front 4 rear 4 | |
| Torque Converter | 315 split torque converter | |
| 6. Steering System | Type | Articulated full hydraulic steering |
| Steering Angle（°） | 35 | |
| 7. Bridge | Type | 25 wheel hub reduction air brake axle |
| 8. Tire | Specification | 17.5-25 |
| Service Brake | Air-lift oil caliper disc brake | |
| Parking Brake | Handbrake | |
| 9. Fuel | Fuel Tank (L) | 75 |
| Hydraulic Tank (L) | 75 | |
| 10. Others | Drive Type | Four-wheel drive |
| Transmission Type | Hydraulic transmission | |
| Braking Distance (mm) | 3100 | |
| 11. Optional Features | Dumping Height | 3.8m/4.2m/4.5m/4.8m |
| Attachments | Hydraulic quick changer/log grab/grass grab/four-in-one bucket/marble fork/auger/mower/snow removal equipment, etc. | |
| The actual specs may vary from the pictures. | ||
