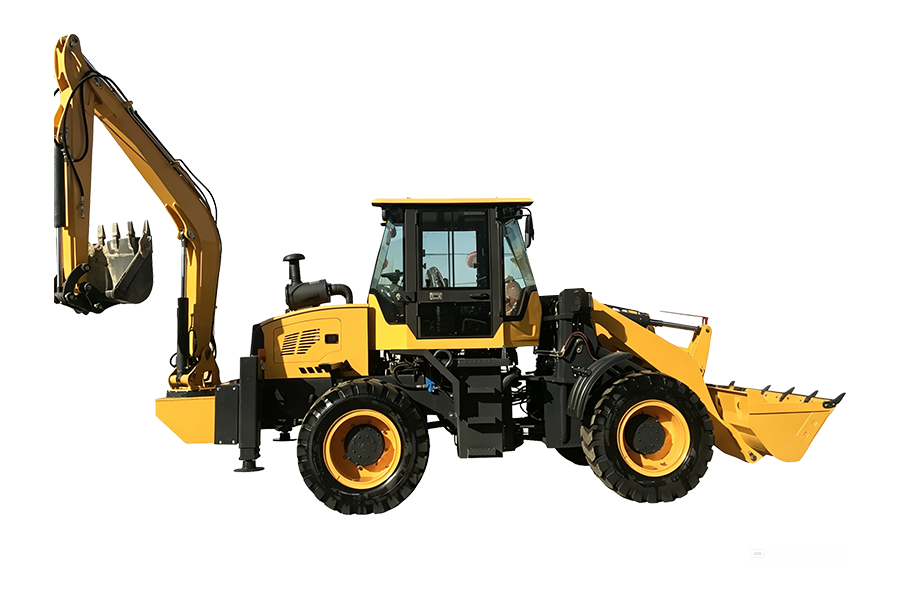

945-65 Backhoe Loader
Laizhou Shahe Industrial Park, Yantai City, Shandong Province, China
Description
| 1.Overall Dimensions | 5. Engine | ||||
|---|---|---|---|---|---|
| 1 | Overall Dimensions (mm) | 6400*2100*3100 | 1 | Model | |
| 2 | Wheelbase (mm) | 2750 | 2 | Type | |
| 3 | Track Width (mm) | 2200 | 3 | Rated Power (KW) | |
| 4 | Minimum Ground Clearance (mm) | 320 | 4 | Rated Speed (r/min) | |
| 5 | Number of Cylinders - Bore | ||||
| 2. Performance Parameters | System Pressure (MPa) | 28 | 6. Transmission System | ||
| 1 | Gross Vehicle Weight (Kg) | ≤8000 | 1 | Transmission | |
| 2 | Maximum Speed (Km/h) | 45 | 2 | Number of Gears | |
| 3 | Maximum Climbing Ability (°) | 35 | 3 | Torque Converter | |
| 4 | Minimum Turning Radius (mm) | 4300 | 7. Steering System | ||
| 5 | 1 | Type | |||
| Maximum Digging Depth (mm) | 3000 | 2 | Steering Angle (°) | ||
| 3. Excavation Parameters | Digging Discharge Height (mm) | 4100 | 8. Axle | ||
| 1 | Maximum Digging Radius (mm) | 4800 | 1 | Type | |
| 2 | Bucket Width (mm) | 60 | 9. Tires | ||
| 3 | Bucket Capacity (m³) | 0.25 | 1 | Specifications | |
| 4 | Maximum Digging Height (mm) | 5600 | 2 | Service Brake | |
| 5 | Excavator Swing Angle (°) | 360 | 3 | Parking Brake | |
| 6 | 10. Fuel Level | ||||
| 7 | Maximum Unloading Height (mm) | 3600 | 1 | Fuel Tank (L) | |
| Maximum Unloading Distance (mm) | 900 | 2 | Hydraulic Oil Tank (L) | ||
| 4. Loading Parameters | Loader Bucket Width (mm) | 2200 | 11. Others | ||
| 4 | Loader Bucket Capacity (m³) | 1.2 | 1 | Drive Type | |
| 5 | Maximum Lifting Height (mm) | 4750 | 2 | Transmission Type | |
| 3 | Braking Distance (mm) | ||||
| The specific parameter changes are subject to the actual product. | |||||
